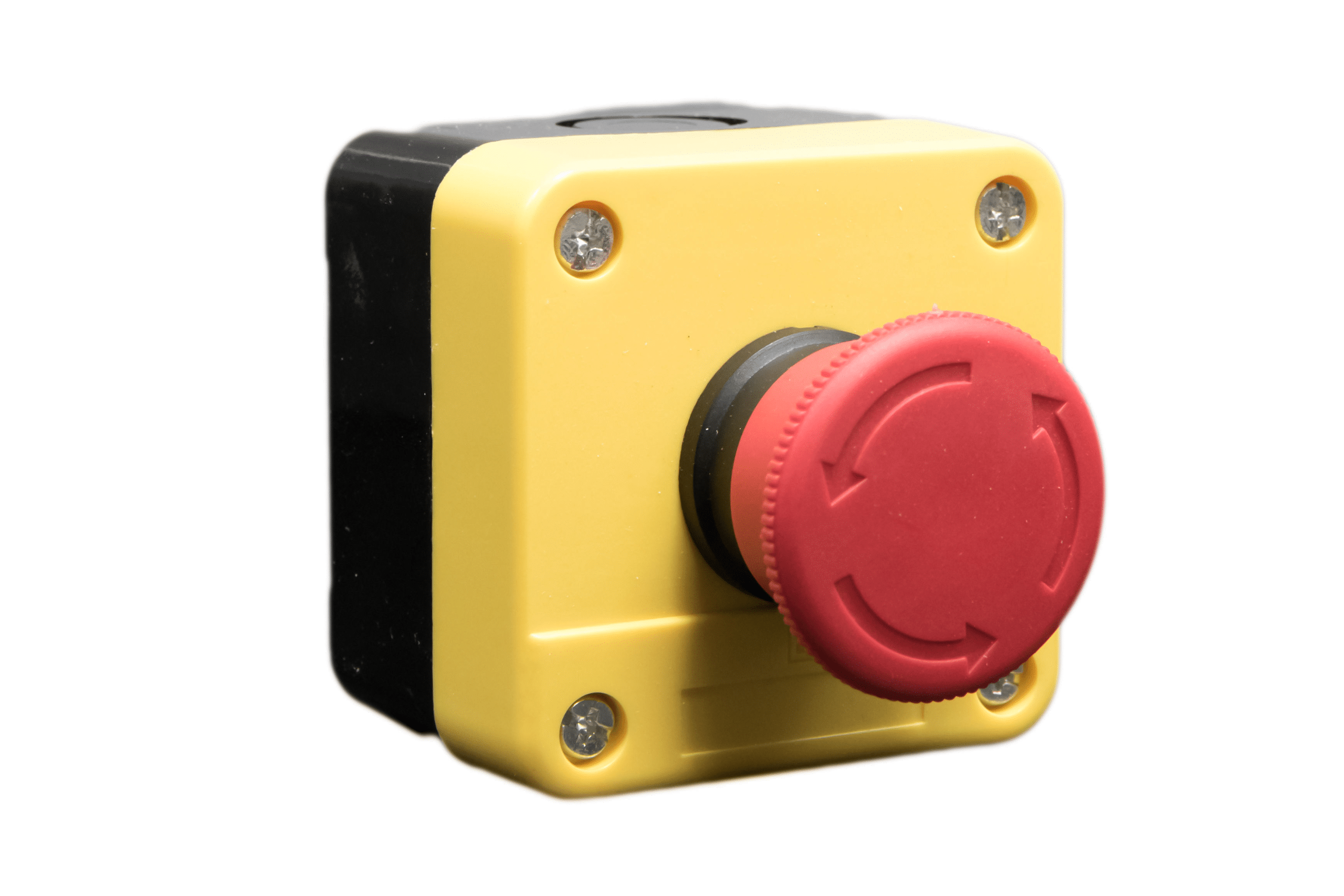

We supply only the highest quality emergency stop buttons to ensure reliability and longevity in emergency shutdown situations. The Emergency Stop Button features a re-settable, push-to-activate and twist-release design, allowing users to press multiple times without needing a replacement.
Applications:
This emergency stop button is ideal for manual shutdown of systems in the event of fire or other emergencies, providing a dependable safety solution for industrial and commercial environments.
Key Features:
✔ Twist-Release, Push to Activate – Simple and effective emergency stop mechanism.
✔ Easy Installation – Designed for hassle-free mounting and setup.
✔ Durable & Reliable – Built to withstand demanding environments.
✔ CMR Electrical 2-Year Warranty – Quality you can trust.
Technical Specifications:
- Reset Type: Twist reset
- Switch Rating: 10(6)A @ 240Vac SPDT
- Housing Dimensions: 80 x 73 x 50mm
- Rated for: 6A @ 230Vac
Installation Instructions:
Warning: Hazardous voltage can cause electrical shock. Disconnect power before proceeding with any work on this equipment.
- Separate the switch base and top.
- Use the base as a template to mark mounting holes.
- Knock out a hole at the top or bottom of the base for cable entry.
- Feed the cable through a cable gland and the designated hole.
- Make the necessary electrical connections.
- Replace the switch top.
