Distance Measuring Water Leak Detection System

Quickly Locate Water Leaks Across Large Buildings

The DLD16 Distance Measuring Water Leak Detection System is designed to monitor commercial and industrial buildings where extensive pipework makes water leaks difficult to locate. By accurately displaying the distance to a leak, maintenance engineers can quickly identify the source of the problem and minimise water damage.

Unlike conventional water leak alarms that simply indicate a leak has occurred, the DLD16 helps maintenance engineers pinpoint the location of the leak, significantly reducing investigation time, minimising disruption and limiting water damage.

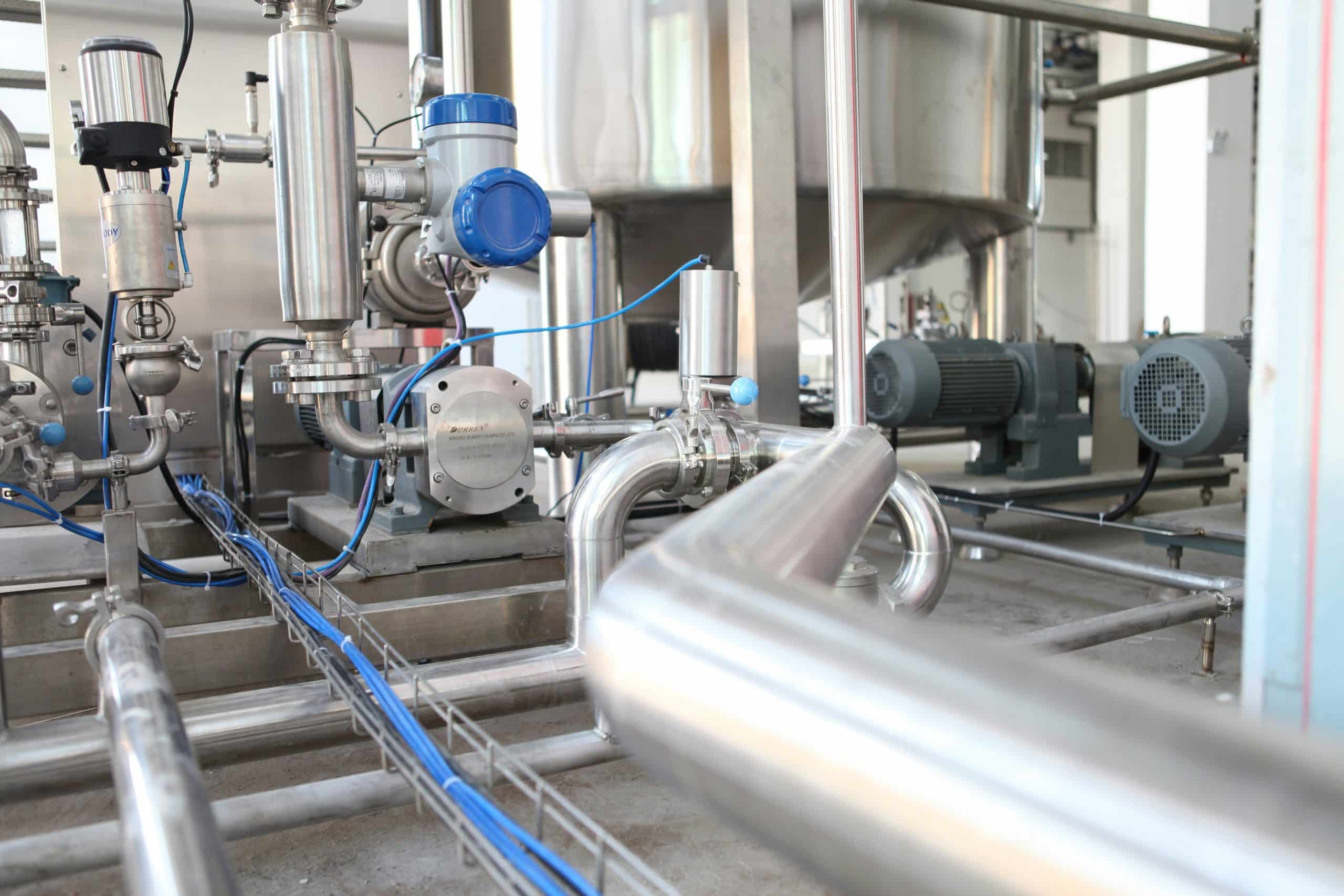

Ideal for long pipe runs in plant rooms, service corridors, server rooms and data centres, each monitoring zone supports up to 250 metres of water leak detection cable, allowing large areas to be protected from a single control panel.

Why Choose the DLD16 Distance Measuring Water Leak Detection System?

Finding a water leak hidden beneath raised floors, above suspended ceilings or alongside hundreds of metres of pipework can be extremely time-consuming.

The DLD16 continuously communicates with intelligent DLD250 distance measuring sensors, which calculate the approximate distance from the sensor to the water leak. This enables engineers to walk directly to the affected area instead of searching the entire cable length.

The result is faster leak location, reduced maintenance costs and significantly less disruption to critical buildings. Benefits include:

• Faster maintenance response
• Reduced building downtime
• Lower repair costs
• Reduced water damage
• Improved protection of critical assets

How does the DLD Distance Measuring Water Leak Detection System work?

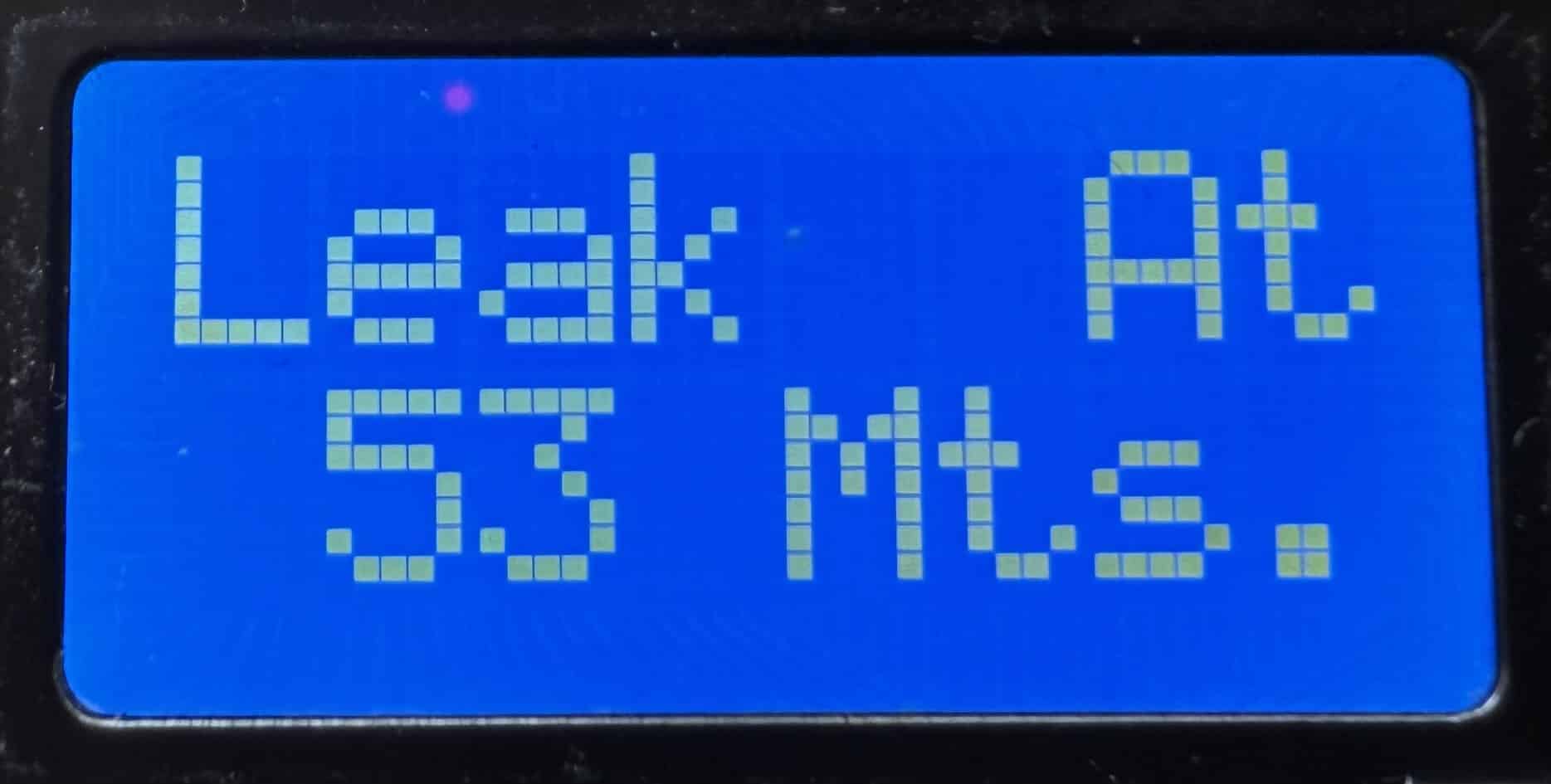

Each DLD250 sensor continuously monitors up to 250 metres of water leak detection cable. When water comes into contact with the sensing cable, the sensor automatically calculates the distance to the leak and displays this value in metres.

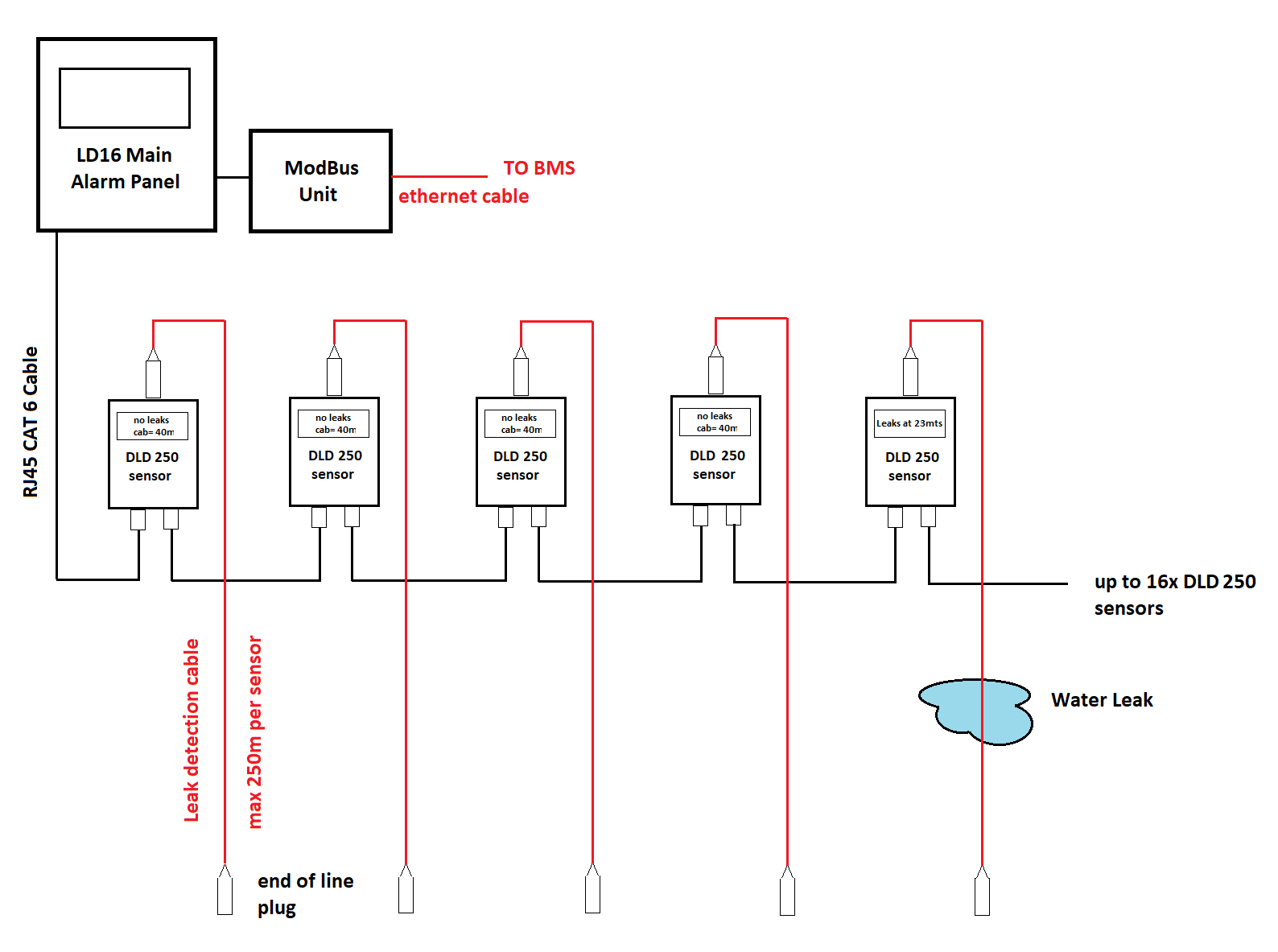

The DLD16 Distance Measuring Water Leak Detection System identifies which of the 16 monitoring zones is in alarm, allowing maintenance engineers to quickly locate the affected DLD250 sensor. The displayed distance then directs engineers to the approximate position of the leak along the sensing cable, dramatically reducing the time required to locate and repair the source of the water leak.

Optional Equipment

Typical Applications

The DLD16 is ideal for monitoring water leaks in:

• Plant rooms
• Service corridors
• Server rooms
• Data centres
• Raised access floors
• Ceiling voids
• HVAC installations
• Chilled water pipework
• Mechanical service risers
• Commercial offices
• Hospitals
• Universities
• Industrial facilities
• Utility tunnels

Intelligent Distance Leak Location

Each zone is monitored by a DLD250 intelligent leak detection sensor. The self-calibrating DLD250 sensor continuously monitors the sensing cable. When water contacts the cable, the sensor calculates the approximate distance to the leak and displays this value in metres.

This makes the DLD16 distance measuring water leak detection system particularly suitable for protecting long pipe runs where conventional water leak detection systems can only identify the affected zone.

Building Management System Integration

The 16 Zone Water Leak Detection System includes volt-free relay outputs for seamless integration with Building Management Systems (BMS), allowing water leak alarms and fault conditions to be monitored remotely.

• Common Water Alarm
• New Alarm
• Common Fault

For networked installations, an optional Modbus TCP Interfacre is available, enabling integration with Building Management Systems using industry-standard Modbus TCP communications.

Why Choose CMR Electrical?

With over 75 years of combined experience, CMR Electrical designs and manufactures reliable water leak detection systems in the UK. Our products protect critical buildings around the world, helping facilities managers quickly detect and locate water leaks before they become costly incidents.
